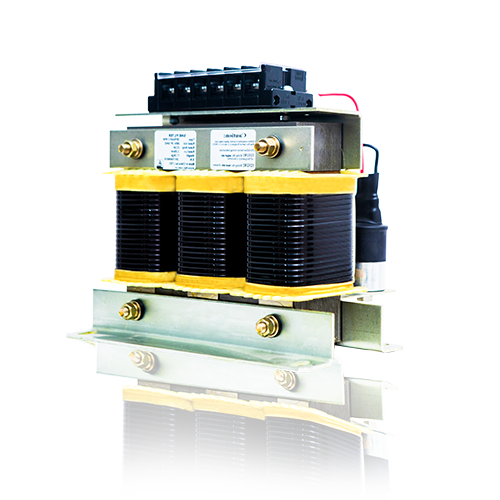

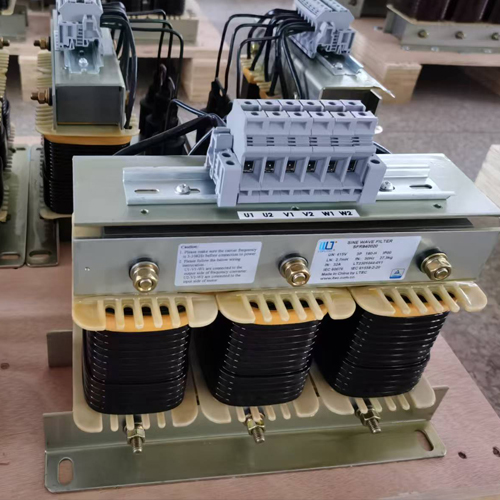

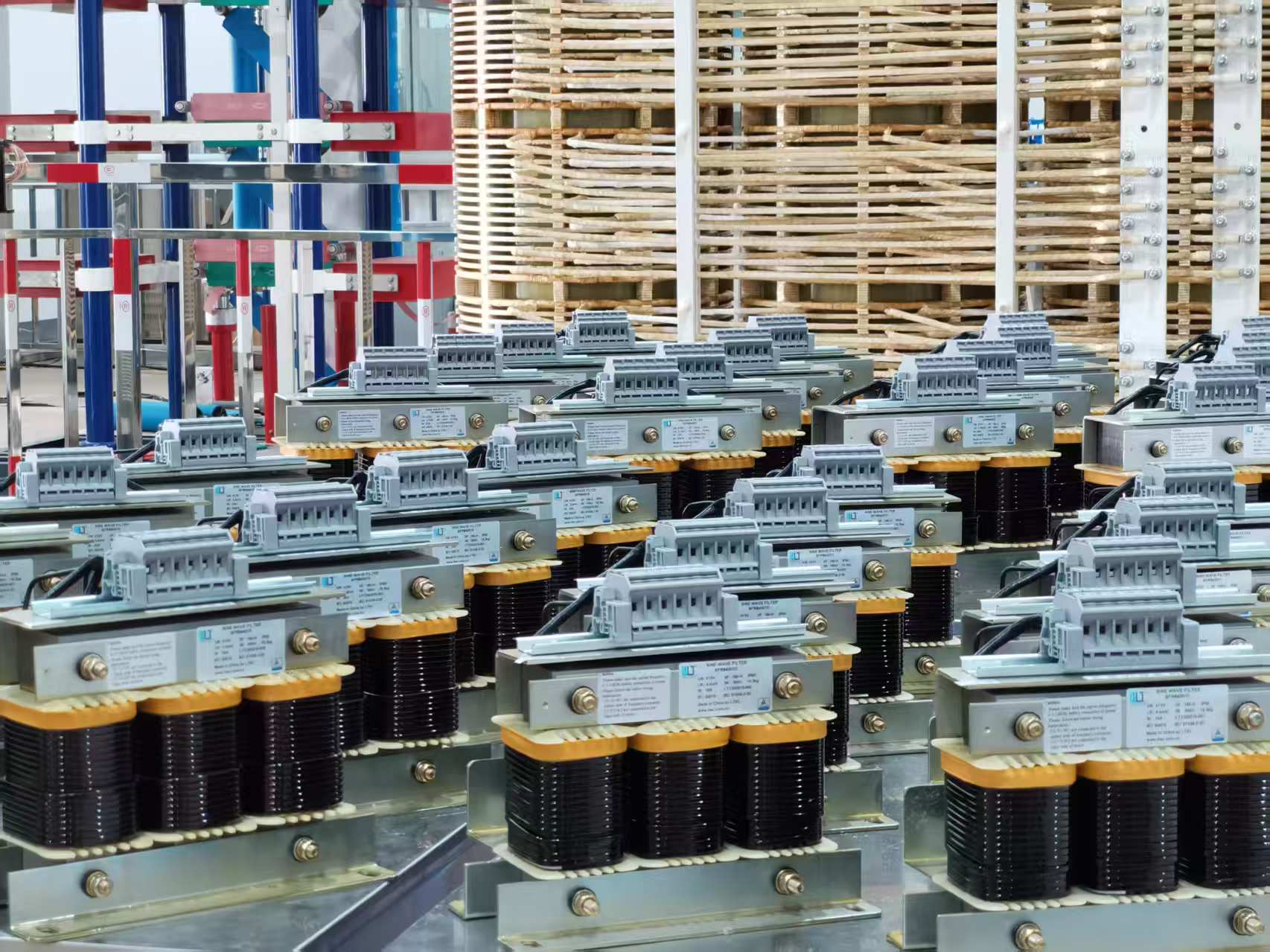

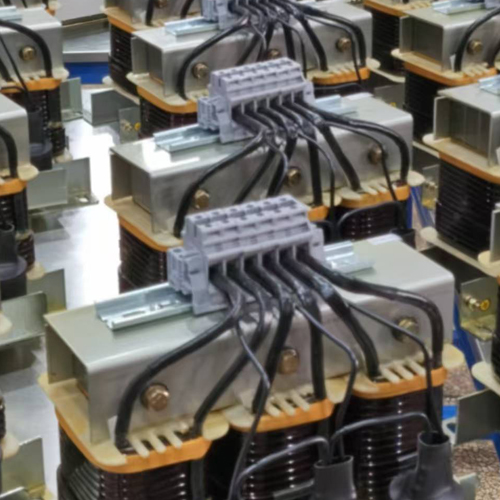

Sine Wave Filters

The products are specially designed for VFD to protect the motors. It is used at the output side of frequency converters and converted the PWM output signal of motor into a smooth sine wave form. Besides it reduces the resonance phenomenon caused by distributed capacitance and inductance of the long cable (longer than 50 meters).

Standard

In compliance with:EN61558-2-20,EN60076-6,UL1446,EN60939

Approval marks:T.pngu.png4.png3.png

Operating condition

Rated voltage: 380V-1000V

Rated frequency: 50Hz/60Hz

Line voltage tolerance: +/-10%

Switching frequency: 3KHz-10KHz

Dielectric test: 50Hz 3KV,60s

Cooling method: Natural air

Ambient temperature: -25 to +50℃

Elevation above sea level: ≤1000m a.s.l.(≤4000m optional)

Maximum humidity: 95%

Protection class: IP00 indoor mounting

Design

Insulation class : H(UL approved resin)

Design method : Three phase, dry type iron core, multiple air gap

Winding material : Copper

Terminals : Copper terminal blocks
