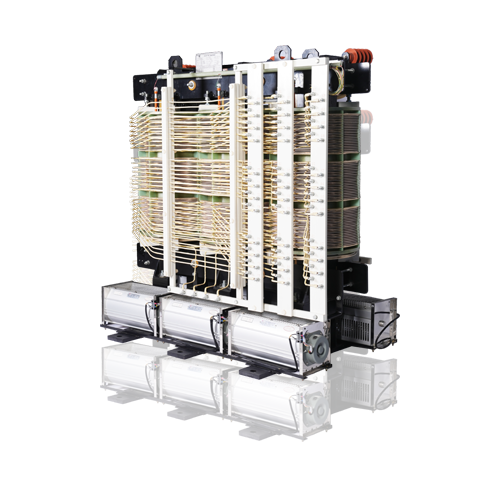

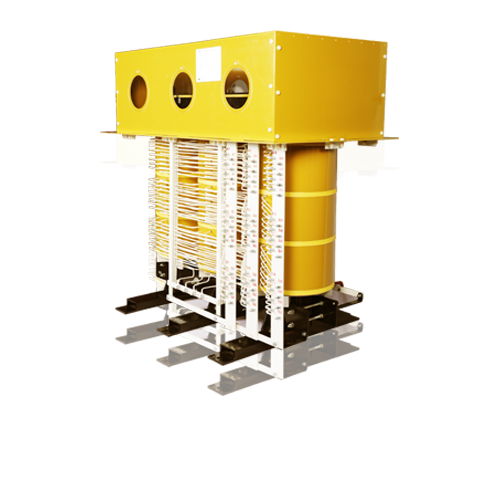

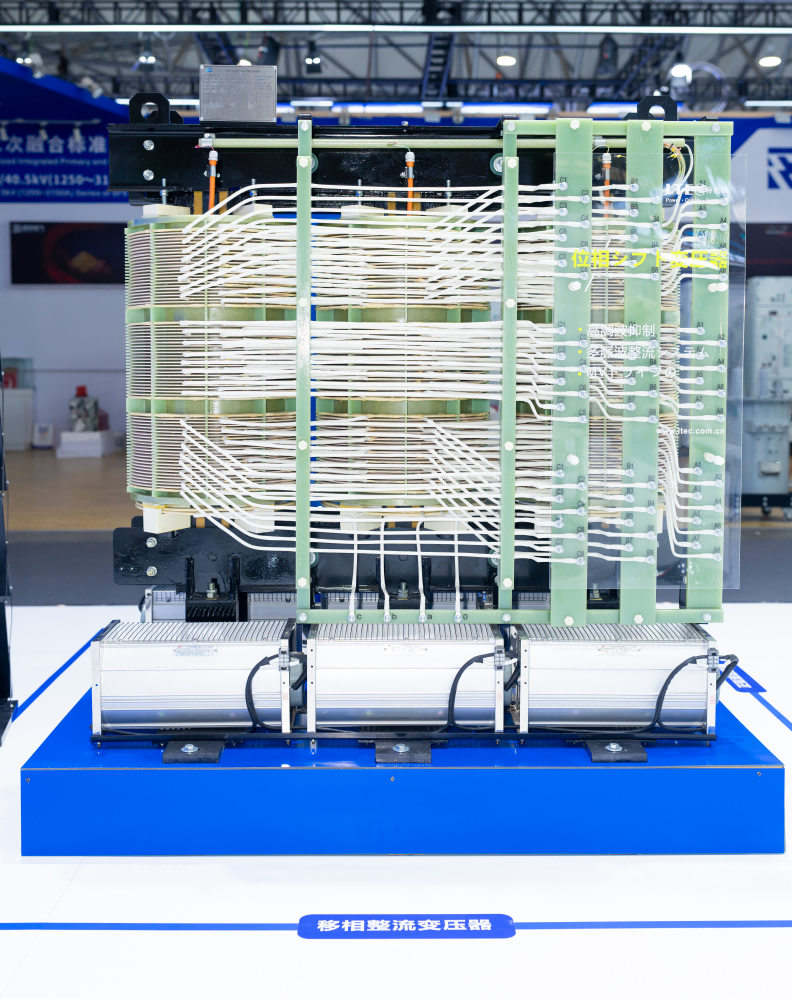

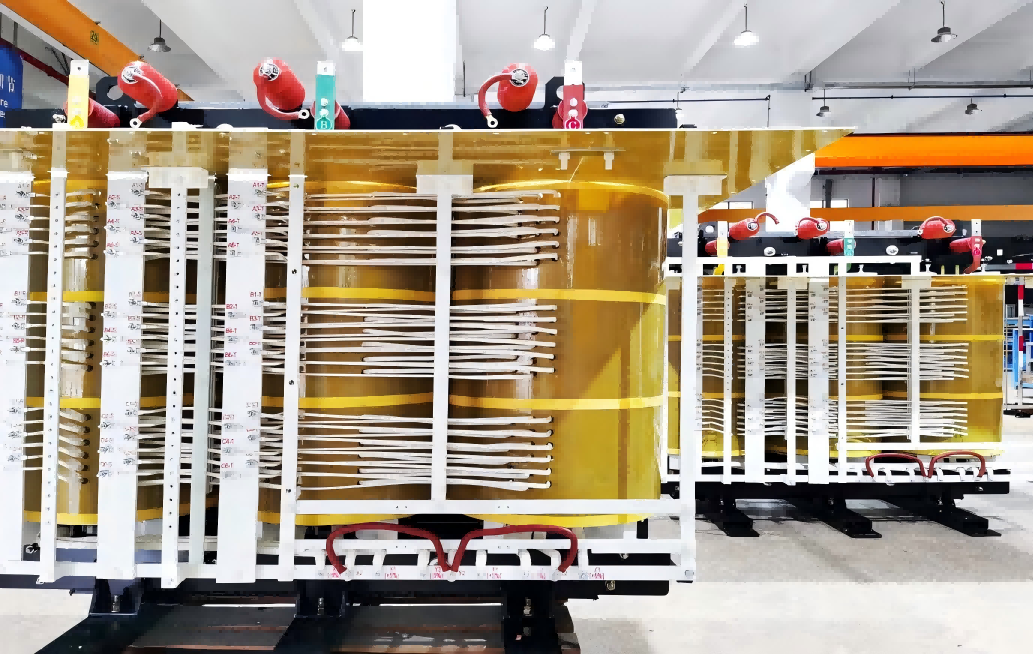

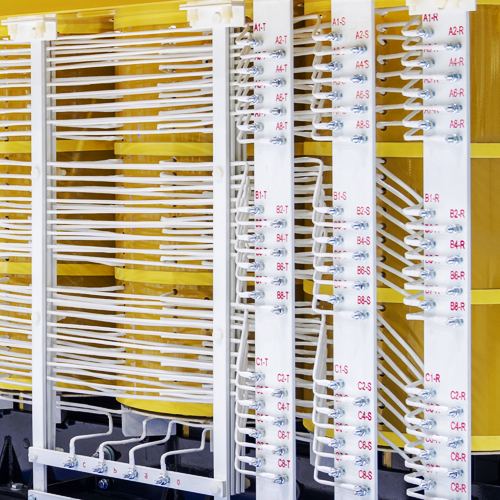

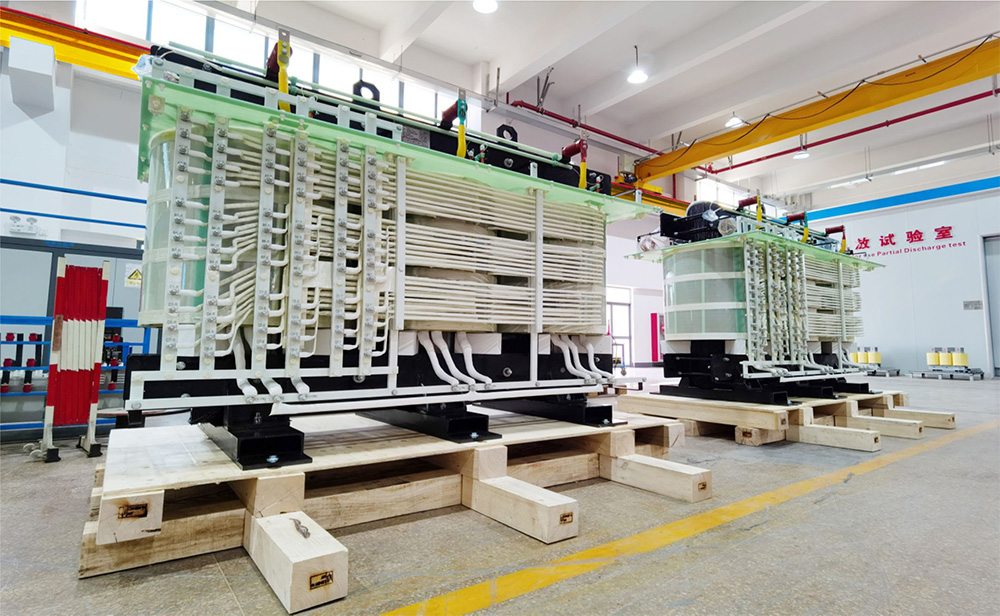

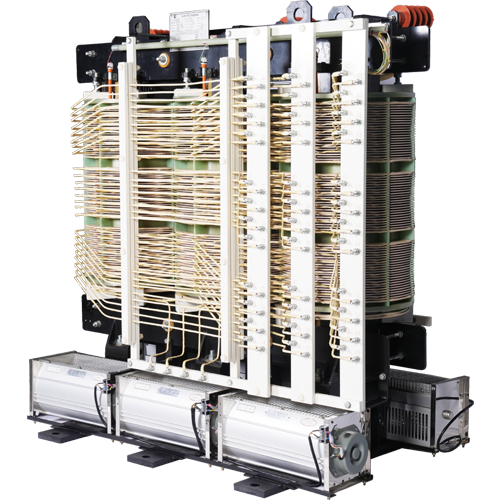

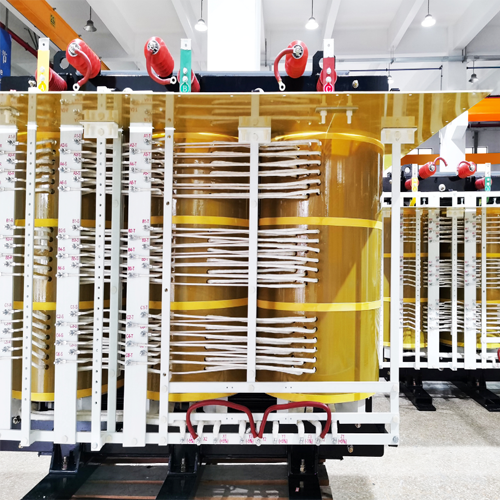

With the development of modern power electronic, the technology of high voltage, big power frequency conversion speed regulation is getting more matured, many motor speed control mode has been changed in this direction. It adopts the phase shifting rectifier transformer as the core part of MV inverter, with nearly perfect sinusoidal wave, so there is no more the harmonic pollutions from LV converter. Moreover, you don’t need to install the distribution transformers in the system.
In compliance with:IEC60076-11,IEC61378-1,UL1446
Approval marks:
Rated primary voltage: 3kV-13.8 kV
Primary voltage tolerance: +/-10%
Rated secondary Voltage: 480V-750V
Rated frequency: 50Hz/60Hz
Efficiency: >95%
Cooling method : Forced air-cooled
Elevation above sea level: ≤1000m a.s.l.
Maximum humidity: 95%
Protection class: IP00 indoor mounting
Insulation class: H(C class optional)
Design method: Three phase, dry type iron core, angle shifting
Tap range: +/-5%
Numbers of secondary windings: 3-10 groups
Winding material: Copper/ Aluminum
Terminals: Copper busbars
