Power Quality Components

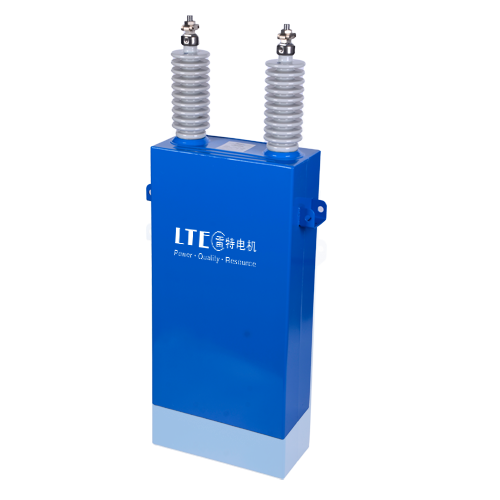

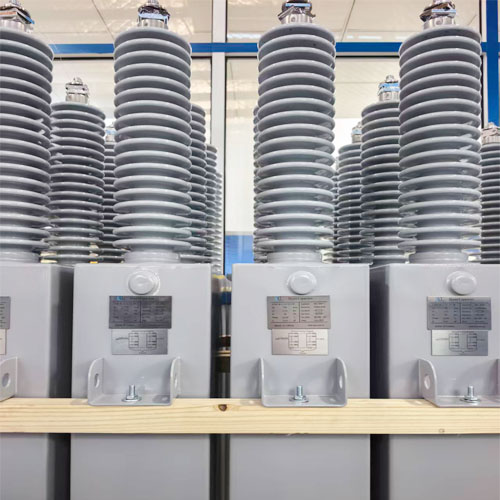

Medium voltage capacitors

LOFUTEC medium-voltage capacitors are mainly used in AC power systems of 1kV and above. The capacitors can provide a low-resistance path for single or multiple harmonic currents, thereby improving the power factor of the system.

Standard

Compliance certification: IEC60871-1:2005  GB/T 11024.1-2010

Certification mark: T.png


Operating condition

Rated voltage: 3Kv-12kV

Rated frequency: 50Hz/60Hz

Rated capacity: 50Kvar-500Kvar

Pressure resistance test: according to standards

Cooling method: natural air cooling

Ambient temperature: -25 to +50℃

Altitude: ≤1000m a.s.l.(≤5000m optional)

Protection level: IP00 indoor installation

Design
