Converter Solutions

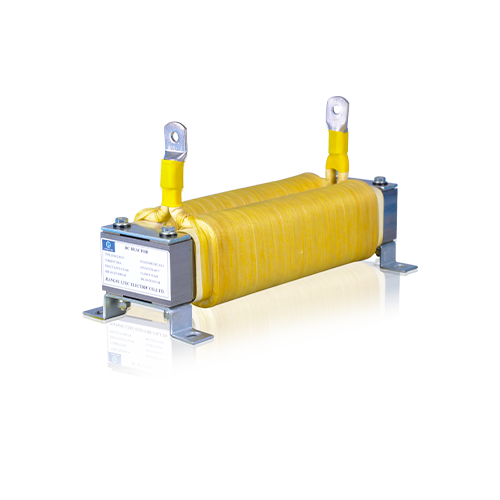

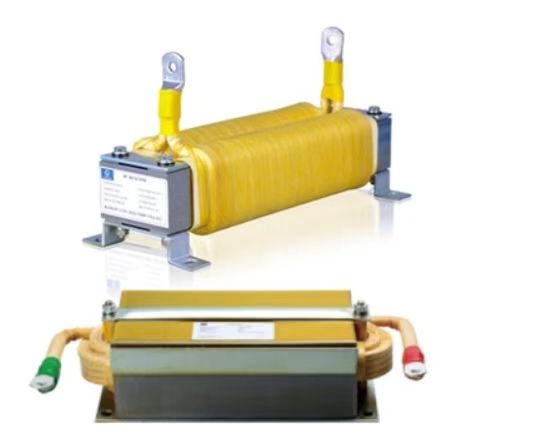

Reactors for Frequency Converter

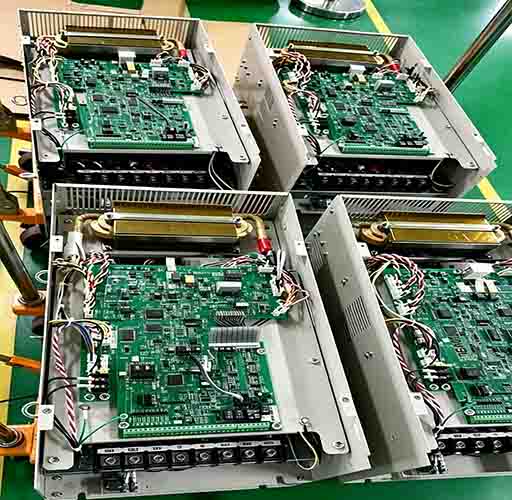

The products are often installed at the outer side or inner side of converters. The main function is to limit the surge current flowing in the power grid, and to reduce its interference with other electrical components.

Standard

In compliance with:EN61558-2-20,EN60076-6,UL1446

Approval marks:T.pngu.png4.png3.png

Operating condition

Rated voltage: 380V-1140V

Rated frequency: 50Hz/60Hz

Line voltage tolerance: +/-10%

Dielectric test: 50Hz 3KV,60s

Cooling method: Natural air

Ambient temperature: -25 to +50℃

Elevation above sea level: ≤1000m a.s.l.(≤5000m optional)

Maximum humidity: 95%

Protection class: IP00 indoor mounting

Design

Rated voltage drop : 3%-6%

Insulation class : H(UL approved resin)

Design method : Single phase or three phase, dry type iron core,
multiple air gap

Winding material : Copper

Terminals : Copper terminals
