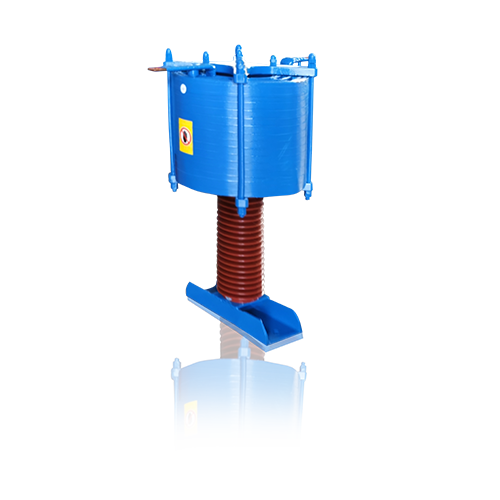

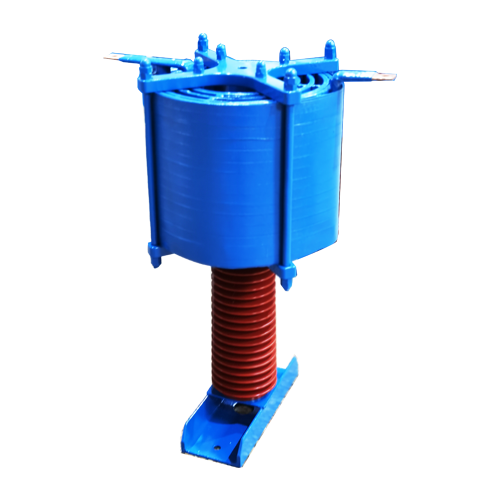

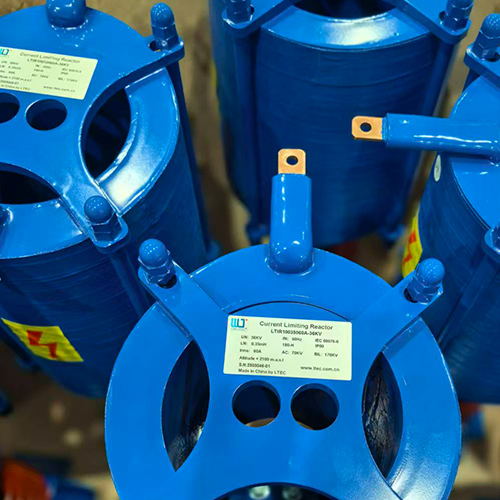

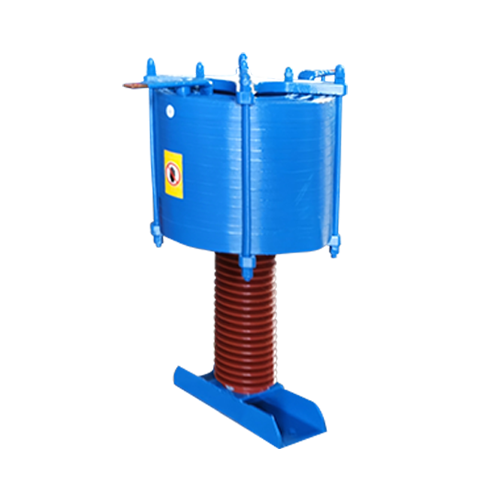

The products, also called inrush reactors or damping reactors, are generally used in the system to protect the equipments free from surging short circuit current . It possesses the functions of limiting peak inrush currents in the switching.
In compliance with: EN60076-6,UL1446
Approval marks:
Rated voltage: 3kV to 35kV
Rated frequency: 50Hz/60Hz
Rated current: 30A-3000A
Dielectric test: According to the standard
Cooling method: Natural air
Ambient temperature: -25 to +50℃
Elevation above sea level: ≤1000m a.s.l.(≤5000m optional)
Maximum humidity: 95%
Protection class: IP00 indoor mounting
Inductance tolerance: +20%
Insulation class: H (UL approved resin)
Design method: Single phase, dry type air core
Winding material: Copper/ Aluminum
Terminals: Copper bar
