Medium Voltage Reactors for PFC

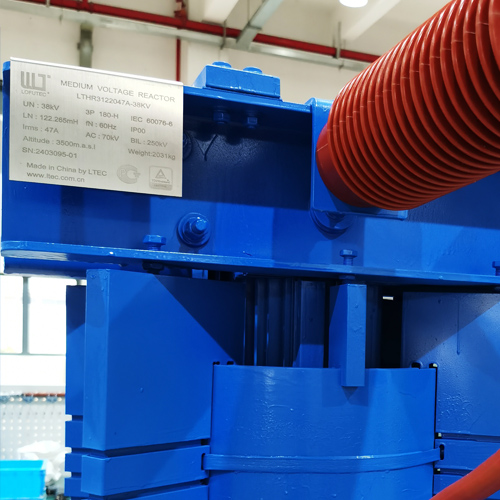

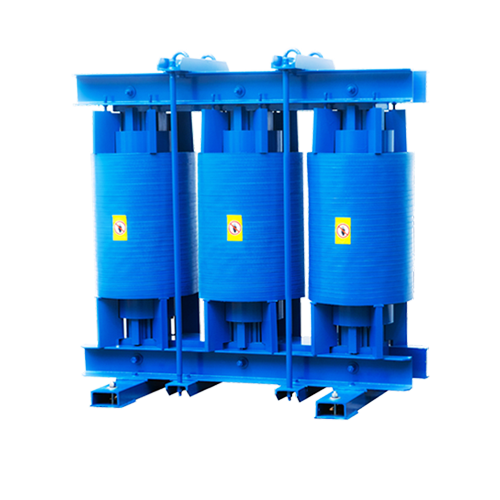

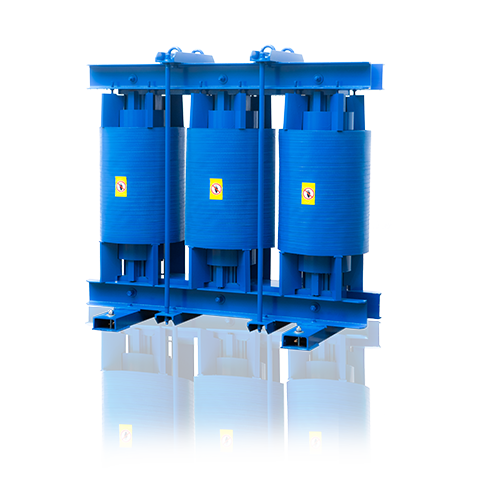

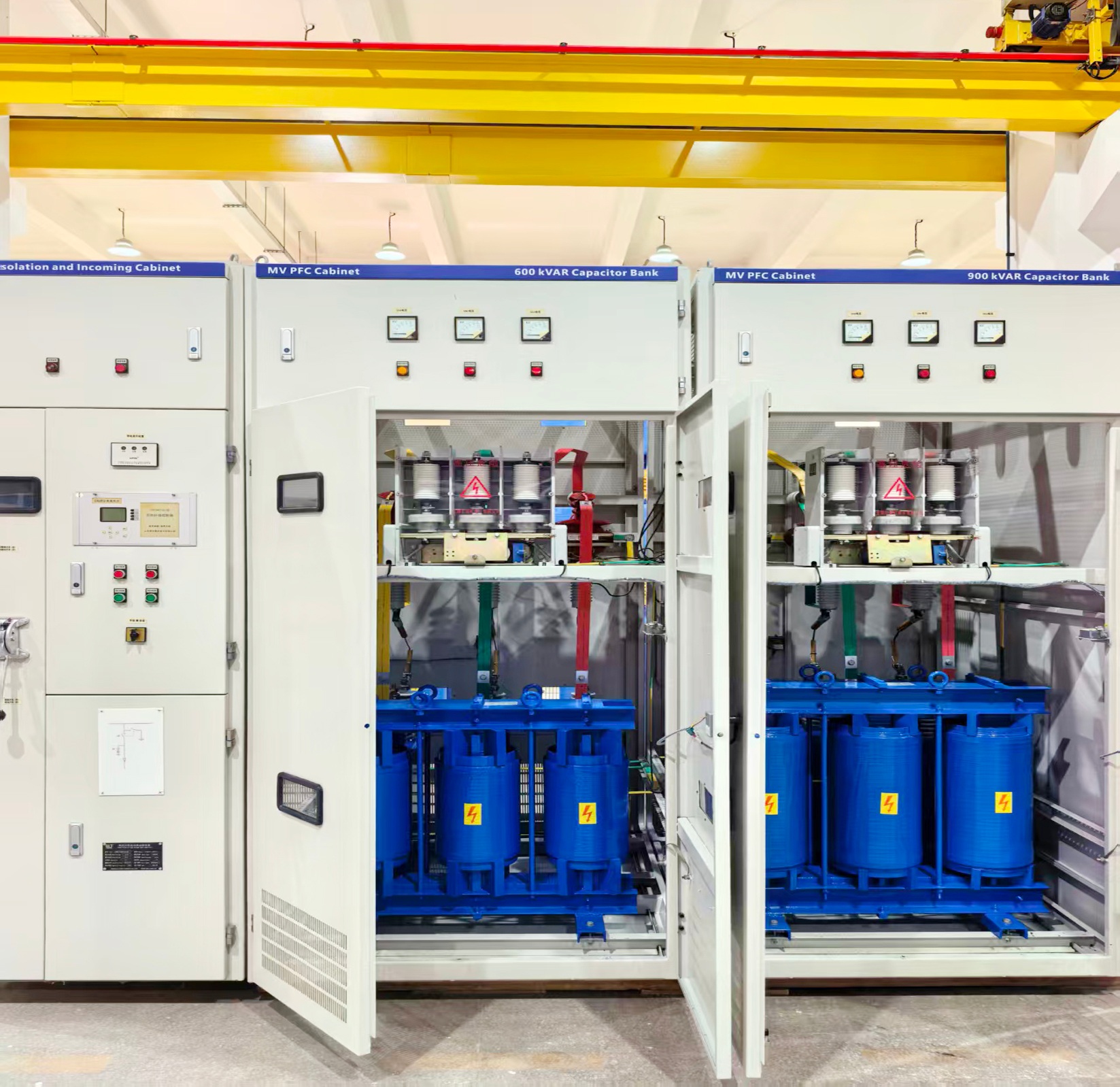

The products, also called detuned reactors or filter reactors, are generally used in series with capacitors in PFC system, in order to reach its target induced current. It possesses the functions of increasing power factors and limiting harmonic current.

Standard

In compliance with:EN 60076-6,UL1446

Approval marks:T.pngu.pngp.png

Operating condition

Rated voltage: 3kV to 35kV

Rated frequency: 50Hz/60Hz

Dielectric test: According to the standard

Cooling method: Natural air

Ambient temperature: -25 to +50℃

Elevation above sea level: ≤1000m a.s.l.(≤5000m optional)

Maximum humidity: 95%

Protection class: IP00 indoor mounting

Permitted harmonic content: U3=0.5%; U5=5%; U7=5%,

Design

Inductance tolerance: -/+3%

Blocking factor: 5%-14%

Linearity: 1.55-2.2In

Insulation class: H (UL approved resin)

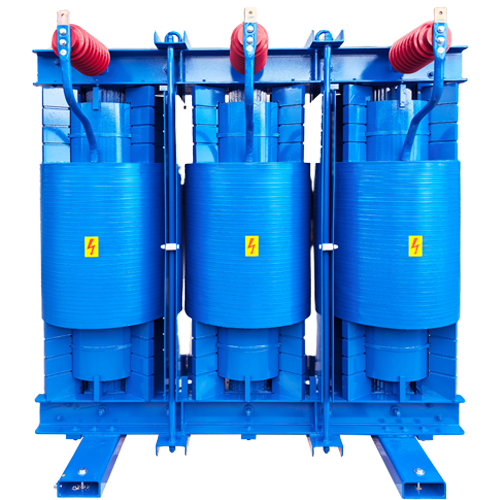

Design method: Single phase or three phase, dry type iron core,
multiple air gap

Winding material: Copper/ Aluminum

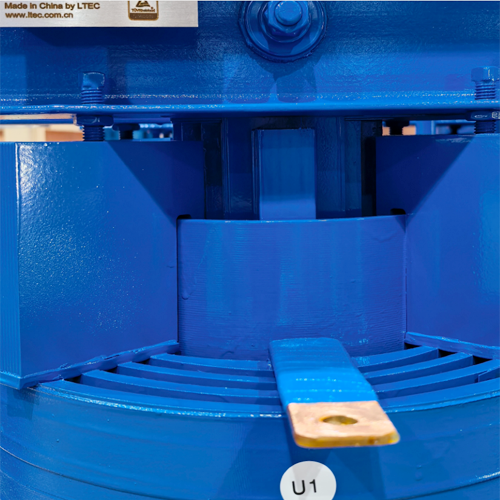

Terminals: Copper bar
